LT3590ESC8#TRMPBF
Manufacturer:
Analog Devices
Mfr.Part #:
LT3590ESC8#TRMPBF
Datasheet:
Description:

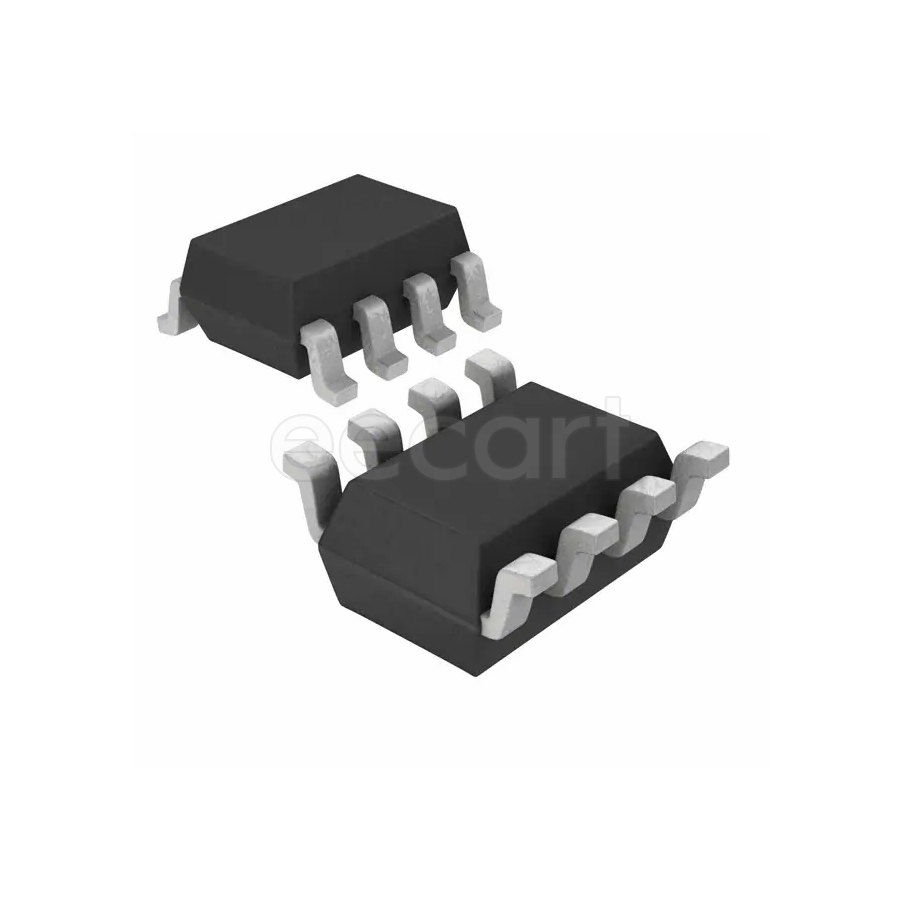

LED Drivers SC-70-8 SMD/SMT PWM 50 mA
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Lead Free | Lead Free |
| REACH SVHC | No SVHC |
| Frequency | 850 kHz |
| Min Input Voltage | 4.5 V |
| Output Current | 50 mA |
| Output Voltage | 55 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Supply Voltage | 55 V |
| Min Supply Voltage | 4.5 V |
| Number of Channels | 1 |
| Switching Frequency | 850 kHz |
| Max Input Voltage | 55 V |
| Number of Outputs | 1 |
| Efficiency | 91 % |
| Number of Segments | 10 |
| Schedule B | 8542390000 |
| Topology | Buck |
| Dimming | PWM |
| Internal Switch | Yes |
| Type | DC DC Regulator |
| Output Current per Channel | 80 mA |
| Max Supply Current | 700 µA |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 1659
Distributors
pcbx
pcbxUnit Price$2.74939
Ext.Price$2.74939
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.74939 | $2.74939 |
| 10 | $2.08429 | $20.84290 |
| 25 | $1.91792 | $47.94800 |
| 50 | $1.82392 | $91.19600 |
| 100 | $1.73451 | $173.45100 |
| 300 | $1.66299 | $498.89700 |
| 500 | $1.59442 | $797.21000 |
